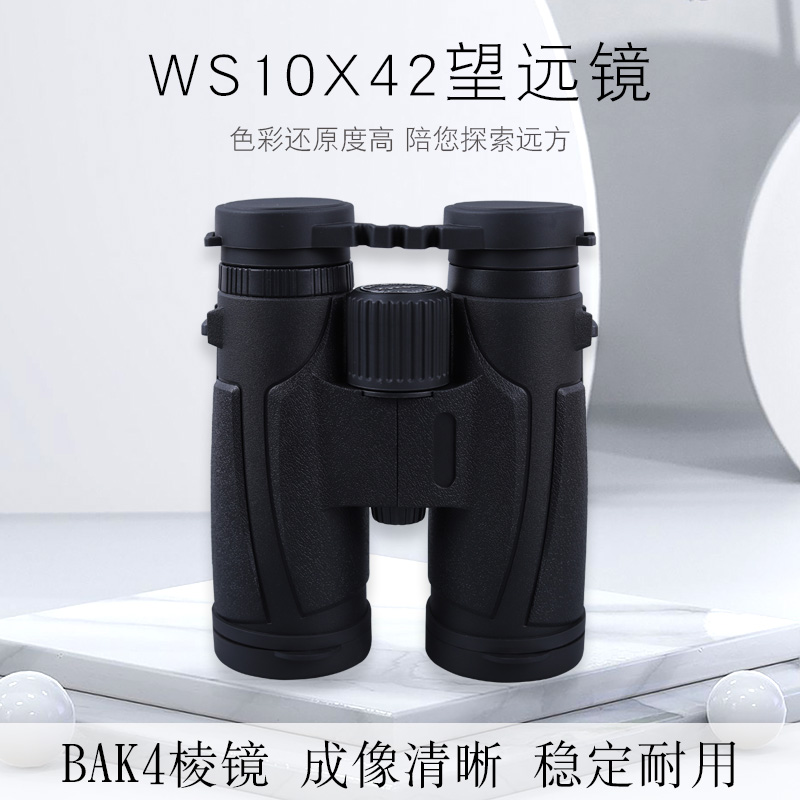

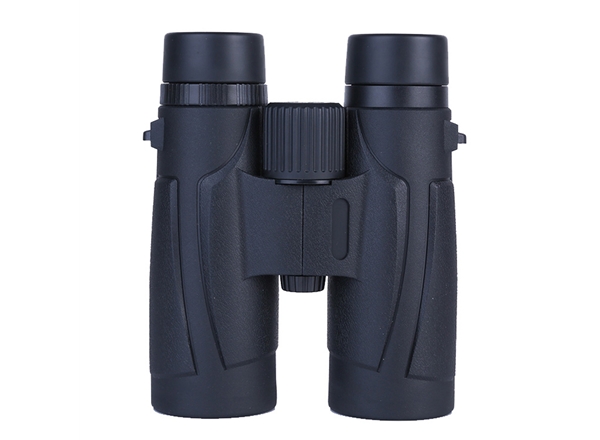

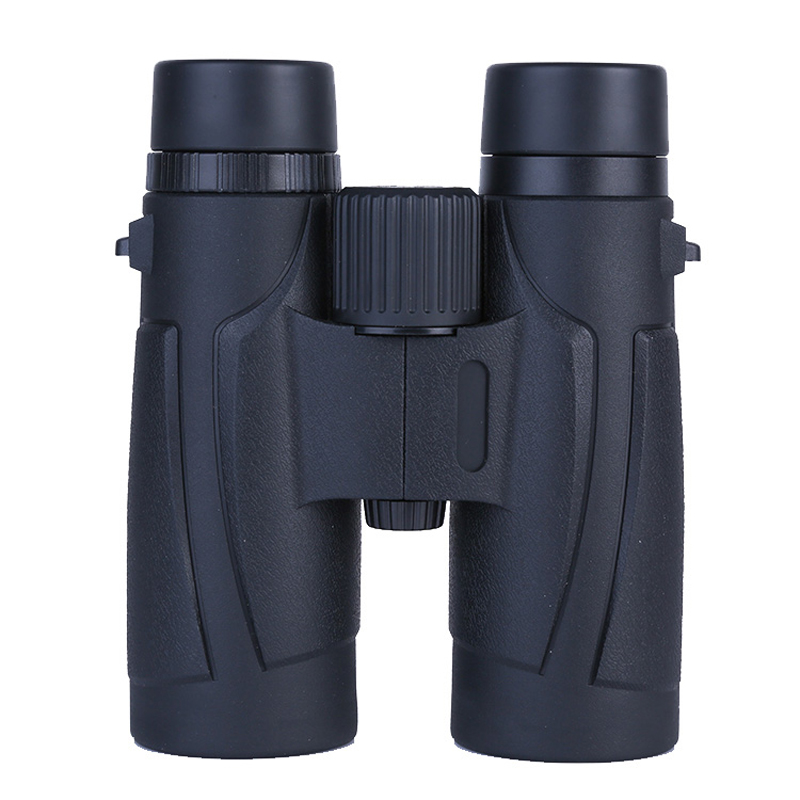

WS 10X42
| WS0842/1042/1242系列产品（16.5棱镜） | ||||||
| POWER | 倍 数 | 有效倍数 | 8x | 10x | 12x | |
| OBJ.LENS DIA. | 物镜直径 | mm | 有效直径 | φ42mm | ||
| TYPE OF PRISM | 棱镜类别 | Type / Material | 类别及材料 | K9（蓝膜） | ||
| NUMBER OF LENS | 透镜组数 | Pieces & Groups | 两边合共多少片及分多少组 | 6pieces 4 groups | ||

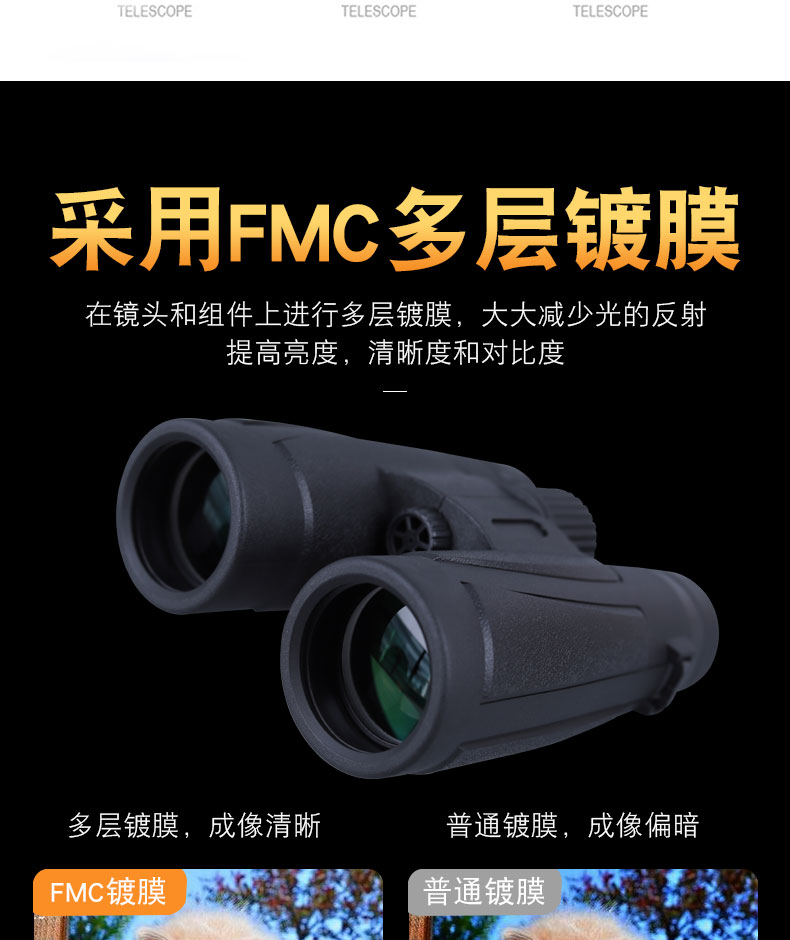

| LENS COATING | 透镜镀膜 | CL/FC/BMC/FBMC | 部份或全部或多层镀膜 | FMC/Object lens&eyepiece is FBMC | ||
| FOCUS SYSTEM | 调焦系统 | Cent. / Ind. / Fix | 中调或分调或定焦 | Cent. | ||
| FOCUSING LENS | 调焦透镜 | Eye. / Obj. / Int. | 目镜或物镜或内调 | Int. | ||
| EXIT PUPIL DIAMETER | 出瞳直径 | mm | φ5.2 | φ4 | ∅3.5 | |
| EXIT PUPIL DIST. | 出瞳距离 | mm | 17.2 | 15.2 | 13 | |
| FIELD OF VIEW | 视 场 | ANGLE | 角度 | 6.3° | 5.8° | 4.5° |
| Ft/1,000Yds | 尺 | 331ft | 305ft | 303ft | ||
| M/1,000M | 米 | 110m | 102m | 101m | ||
| MIN. FOCAL LENGTH | 最近焦距 | M / Ft. | 米 / 尺 | 2m | 2m | 2m |
| RELATIVE BRIGHTNESS | 相对亮度 | 27.04 | 18.23 | 11.6 | ||
| TWILIGHT INDEX | 黄昏指数 | 18.3 | 20.4 | 22.5 | ||
| DIOPTER SYSTEM | 视差补偿 | 左或右的目镜或物镜 | Right Eyepiece | |||
| DIOPTER COMP. | 视差度数 | + - Optic.Degree | ±5 | |||
| INTERPUPILLARY DIST. | 目镜相距 | mm | 最阔及最窄时 | 56mm~74mm | ||
| WATER PROOF | 防水结构 | Dept/Time | 深度及时间 | IPX6 | ||
| NITROGEN FILLED | 氮气充存 | Yes / No | 有或无 | 先配 | ||
| EYECUPS SYSTEM | 目罩结构 | Rubber/Pop-up/Twist-up | 可反接橡胶/拉出/转出 | Twist-up | ||
| POUCH | 软 包 | Yes / No - Mat'l. | 有或无及材料 | yes | ||
| STRAP | 手 带 | Yes / No - Mat'l. | 有或无及材料 | yes | ||
| CLEANING CLOTH | 清 洁 布 | Yes / No | 有或无 | yes | ||
| SILICA GEL | 干 燥 剂 | Yes / No | 有或无 | yes | ||
| UNIT DIAMENSION | 产品尺寸 | mm | 130x56x160mm | 130x56x158mm | 130x56x158mm | |
| UNIT WEIGHT | 产品重量 | gm/oz. | 715g | 703g | 703g | |
| GIFT BOX SIZE | 彩盒尺寸 | mm | 145x80x185mm | 145x80x185mm | 145x80x185mm | |
| PIECES PER INNER CARTON | 内箱件数 | Pieces/Size | 只数及尺寸 | |||
| INNER CARTON SIZE | 内箱尺寸 | |||||
| PIECES PER SHIPPING CARTON | 装箱件数 | Pieces | 20PCS | 20PCS | 20PCS | |
| SHIPPING CARTON SIZE | 装箱尺寸 | Size | cm | 41x31x39cm | 41x31x39cm | 41x31x39cm |
| GROSS WEIGHT | 毛重 | kg./Pound | 20.3kg | 20.3kg | 20.3kg | |
| NET WEIGHT | 净重 | kg./Pound | 19.3kg | 19.3kg | 19.3kg | |
