WS 10X42
| WS0842/1042/1242 | ||||
| POWER | 8x | 10x | 12x | |
| OBJ.LENS DIA. | mm | φ42mm | ||

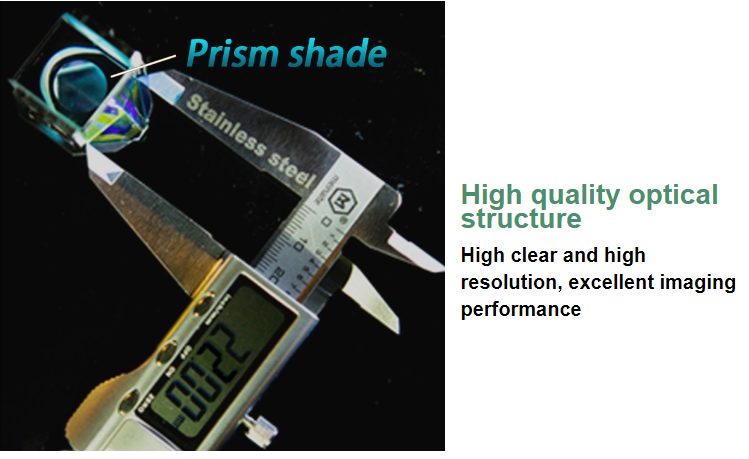

| TYPE OF PRISM | Type / Material | K9（blue film） | ||
| NUMBER OF LENS | Pieces & Groups | 6pieces 4 groups | ||
| LENS COATING | CL/FC/BMC/FBMC | FMC/Object lens&eyepiece is FBMC | ||
| FOCUS SYSTEM | Cent. / Ind. / Fix | Cent. | ||
| FOCUSING LENS | Eye. / Obj. / Int. | Int. | ||
| EXIT PUPIL DIAMETER | mm | φ5.2 | φ4 | ∅3.5 |
| EXIT PUPIL DIST. | mm | 17.2 | 15.2 | 13 |
| FIELD OF VIEW | ANGLE | 6.3° | 5.8° | 4.5° |
| Ft/1,000Yds | 331ft | 305ft | 303ft | |
| M/1,000M | 110m | 102m | 101m | |
| MIN. FOCAL LENGTH | M / Ft. | 2m | 2m | 2m |
| RELATIVE BRIGHTNESS | 27.04 | 18.23 | 11.6 | |
| TWILIGHT INDEX | 18.3 | 20.4 | 22.5 | |
| DIOPTER SYSTEM | Right Eyepiece | |||
| DIOPTER COMP. | + - Optic.Degree | ±5 | ||
| INTERPUPILLARY DIST. | mm | 56mm~74mm | ||
| WATER PROOF | Dept/Time | IPX6 | ||
| NITROGEN FILLED | Yes / No | |||
| EYECUPS SYSTEM | Rubber/Pop-up/Twist-up | Twist-up | ||
| POUCH | Yes / No - Mat'l. | yes | ||
| STRAP | Yes / No - Mat'l. | yes | ||
| CLEANING CLOTH | Yes / No | yes | ||
| SILICA GEL | Yes / No | yes | ||
| UNIT DIAMENSION | mm | 130x56x160mm | 130x56x158mm | 130x56x158mm |
| UNIT WEIGHT | gm/oz. | 715g | 703g | 703g |
| GIFT BOX SIZE | mm | 145x80x185mm | 145x80x185mm | 145x80x185mm |
| PIECES PER INNER CARTON | Pieces/Size | |||
| INNER CARTON SIZE | ||||
| PIECES PER SHIPPING CARTON | Pieces | 20PCS | 20PCS | 20PCS |
| SHIPPING CARTON SIZE | Size | 41x31x39cm | 41x31x39cm | 41x31x39cm |
| GROSS WEIGHT | kg./Pound | 20.3kg | 20.3kg | 20.3kg |
| NET WEIGHT | kg./Pound | 19.3kg | 19.3kg | 19.3kg |
